A Frame Off Restoration

August 2012

The Rolling Chassis

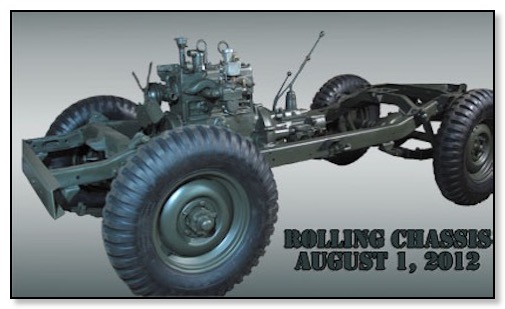

Photo of Jeep Rolling Chassis
We started the rebuild phase with a big crew. We had four of the six motor pool crew and Ray’s cousin James. Needless to say we got a lot accomplished. We were able to install the suspension, both axles, the tie rods, wheels, and engine. The build gave us a little trouble from time to time. We discovered that we had received the wrong u-bolts for the springs. We made due, however we will have to replace the rear bolts before we take it out on the road. We also will have to replace the wheel studs and lug-nuts as well. The brakes on the left front tire had seized making our plans for a “rolling” chassis impossible. After freeing the brakes we installed the tie rods, the engine, manifolds, and carb. What a great day! We are now ready to take it to a local car show and display our one year progress—as a rolling chassis.

Phase III - Rebuild

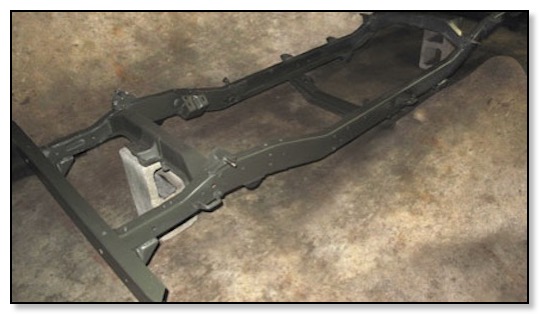

Photo of painted frame
Phase III, the most fun! We added parts, one by one until the restoration was complete. Our first priority was to get the rolling chassis complete. Basically everything that is not body related.

Getting Ready for Reassembly

Photo of cartoon
Next came the fun part—putting all the pieces back together!
1953 M38A1 Navy Jeep

Phase III Restore

Assembly time! Using the hundreds of pictures, careful labeling, reading the manuals and most importantly consulting the internet, YouTube, and knowledgeable friends and vendors we put each component back together an on the Jeep. It was very gratifying to see each part back in place. Some parts had not been on the Jeep since it was on active duty!

Click the Phase III link below and scroll to the bottom to see the progression.
